#58 HO Scale - Scale Metal Couplers with Gearboxes - Medium (9/32) Centerset Shank

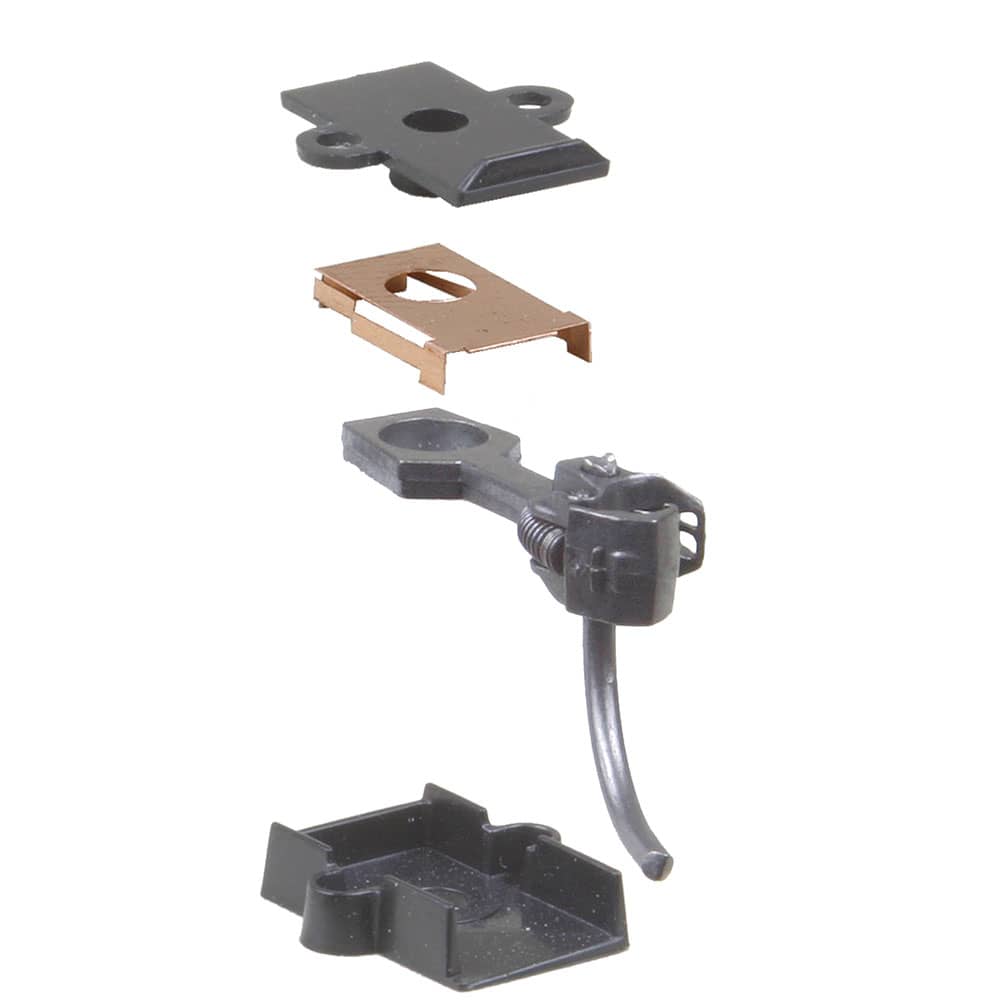

This industry leading coupler features an all metal standard coupler, and #634 standard centering spring and comes complete with an insulated draft gearbox and lid. The #58 Magne-Matic® Scale Metal Coupler may be mounted with the included #232 Gearbox or with other manufacturers cast-on coupler pockets. The 158 Scale Whisker® Coupler is equivalent to the #58 Scale Metal Coupler. It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox. Two pair per package UPC: 765484000587 HO-Scale Package Includes:
- (2) Pair #58 Scale Metal Couplers - Medium Centerset Shank
- (2) Pair #634 Centering Spring NO.5® Style
- (2) Pair #232 Gearboxes
- (2) #625 Knuckle Springs
#58 Metal Coupler Features:
| Material | - Metal |
| Shank Length | - Medium (9/32) (center hole to back of coupler head) |
| Coupler Offset | - Centerset |
| Knuckle Spring | - #625 |
| Centering System | - Standard Shank |
| Centering Spring | - #634 Centering Spring NO.5® Style |
| Head | - Scale Head |
| Works In Place of | - NO.5®, #28, #118, #119, #148, #158, most medium centerset clone couplers |
| Works With | - #213, #232, #234, #242, most manufacturer cast-on draft gearboxes |
#232 Plastic Draft Gearboxes & Lids Features:
| Material | - Insulated Plastic |
| Dimensions | - 29/64L x 19/64W x 7/64H |
| Works With | - NO.5®, #58, 20-Series and all Whisker® Couplers |
Mounting Specifications:
| Mounting Height | - 29/64 |
| Centerline | - 25/64 |
| Trip Pin Height | - 1/32 |
| Center Hole | are the most commonly used. (Screw length will vary) |
| Side Holes | (Screw length will vary) |
